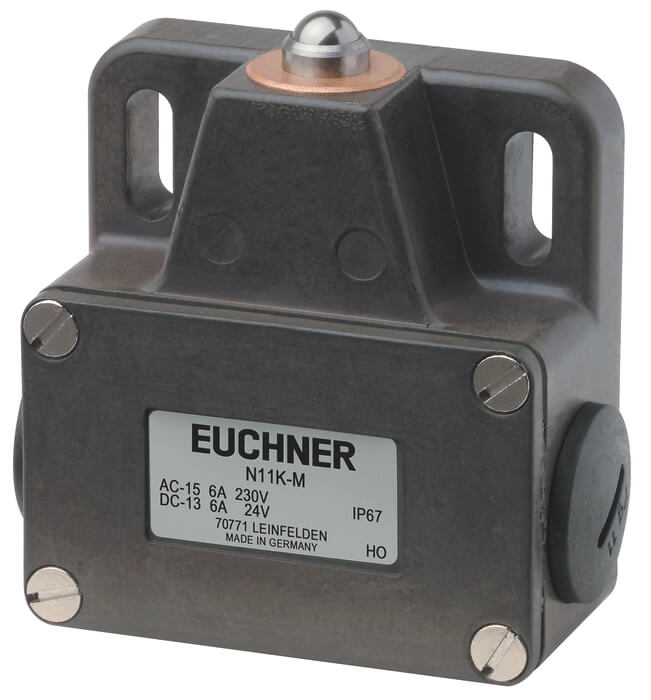

Euchner N11R-M 086313 Hassas Tek Limit Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
273108
Garanti Süresi
24 Ay
Fiyat
169,79 EUR + KDV
* 2.166,36 TL den başlayan taksitlerle!
7.946,21 TL
Euchner N11R-M 086313 Hassas Tek Limit Anahtarı N11, Makaralı Piston
Piston malzemesi paslanmaz çelik
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Anodized die-cast alloy |
| Weight | |
| Net | 0,2 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 30 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Snap-action switching contact |
| Installation orientation | Any |
| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Connection | |
| 3 x | M20 x 1.5 |
| Approach speed | 0,01 ... 80 m/min |
| Actuating element | |
| Plain bearing metal | Roller plunger |
| Actuating force | min.20 N |
Electrical connection ratings
| Thermal rated current Ith | 10 A |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 10A 230V |
| DC-13 | 6A 24V |
| AC-12 | 16A 230V |
| Short circuit protection according to IEC 60269-1 | 16A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching current | |
| Min. at DC 24V | 20 mA |
| Connection cross-section | 0,34 ... 1,5 mm² |
Reliability values according to EN ISO 13849-1
| B10D | 20 x 106 |
