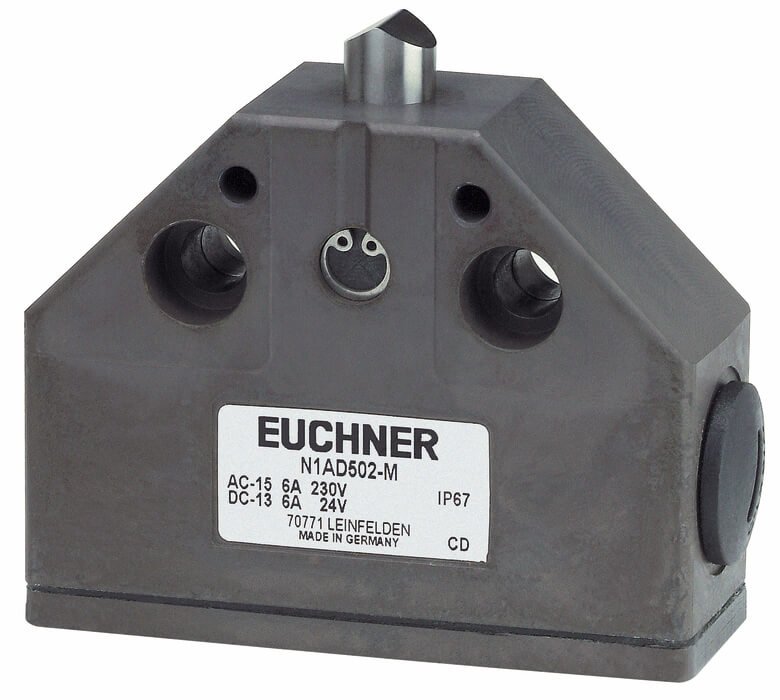

Euchner N1AD502-M 079265
Hassas Tek Limit Anahtarı N1A, Keski Pistonu
Piston malzemesi paslanmaz çelik
DIN 43693'e göre muhafaza
Approvals
Mechanical values and environment
Contact bounce time | < 3ms |
Contact closing time | < 4ms |
Design | Housing according to DIN 43693 |
Housing material | |
Housing | Anodized die-cast alloy |
Weight | |
Net | 0,25 kg |
Ambient temperature | -5 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 30 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Snap-action switching contact |
Installation orientation | Any |
Number of switching elements | 1 |
Number of NC contacts | 1 |
Number of NO contacts | 1 |
Connection | |
2 x | M16 x 1.5 |
Approach speed | 0,01 ... 40 m/min |
Actuating element | Chisel plunger |
Actuating force | min.20 N |
Operating point accuracy | ± 0.002 |
Electrical connection ratings
Thermal rated current Ith | 8 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 6A 230V |
DC-13 | 6A 24V |
AC-12 | 8 A, 250 V |
Short circuit protection according to IEC 60269-1 | 8A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 12V | 10 mA |
Connection cross-section | 0,34 ... 1,5 mm² |
