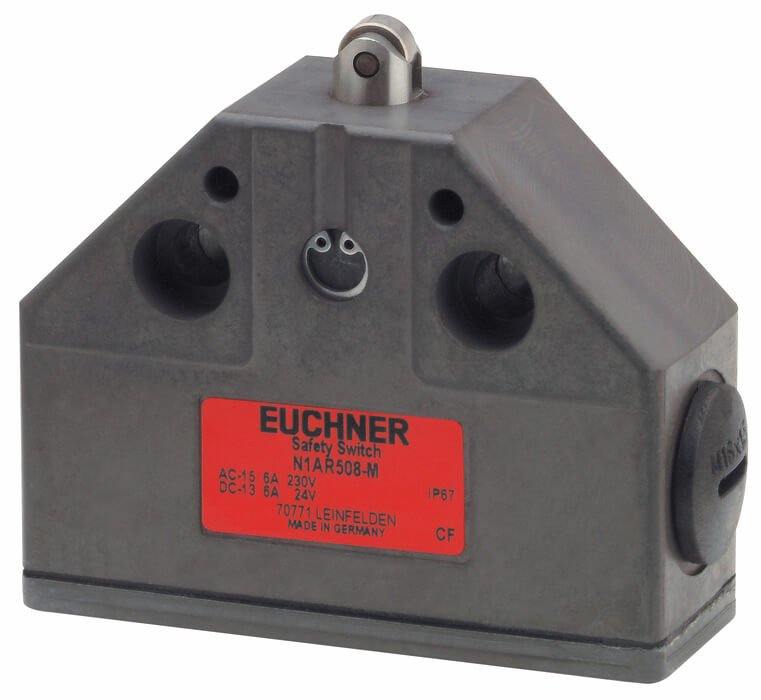

Euchner N1AR514-M 078487 Tek Delik Sabitleme Limit Anahtarı

Figür

Yatay

90 ° 'lik adımlarla ayarlanabilir



Anahtarlama elemanı

514 Snap-action anahtarlama kontağı 1 NC + 1 NO

Pozitif sürüşü elde etmek için, boyut gezici kenet/mangal tarafından korunmalıdır. Köşe yaklaşma kılavuzları gibi harekete geçirme elemanları, EN ISO 14119'a göre sıkıca monte edilmelidir, yani perçinlenmeli, kaynaklanmalı veya gevşemeye karşı başka şekilde sabitlenmelidir.



Approvals

Mechanical values and environment

Contact bounce time	≤ 3ms
Contact closing time	≤ 5ms
Design	Housing according to DIN 43693
Housing material
Housing	Anodized die-cast alloy
Weight
Net	0,25 kg
Ambient temperature	-25 ... 80 °C
Degree of protection	IP67
Mechanical life	1 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Snap-action switching contact
Installation orientation	Any
Number of switching elements	1
Number of positively driven contacts	1
Number of NO contacts	1
Connection
2 x	M16 x 1.5
Approach speed	0,01 ... 80 m/min
Actuating element	Roller plunger
Roller diameter	8 mm
Actuating force	min.30 N

Electrical connection ratings

Thermal rated current Ith	10 A
Utilization category acc. to EN 60947-5-1
AC-15	2.5A 230V
DC-13	6A 24V
Short circuit protection according to IEC 60269-1	6A gG
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	4 kV
Switching current
Min. at DC 24V	5 mA
Connection cross-section	0,34 ... 1,5 mm²

Reliability values according to EN ISO 13849-1

	Monitoring of the safety guard position
B10D	2 x 106
