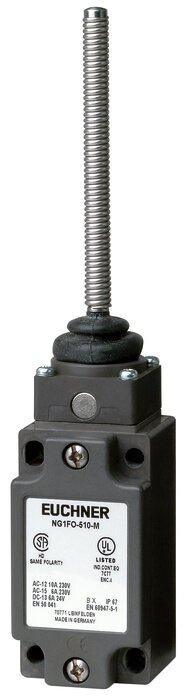

Euchner NG1FO-510-M 079911
Pozisyon Anahtarı NG.FOR, yaylı aktüatör
Yaylı aktüatör FO
Kablo girişi M20 x 1.5
Harekete geçirici yön: her yönden
Anahtarlama elemanı
510 Snap-action anahtarlama kontağı 1 NC + 1 NO
Approvals
Mechanical values and environment
Housing material | |
Housing | Anodized die-cast alloy |
Weight | |
Net | 0,3 kg |
Ambient temperature | -25 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 30 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Snap-action switching contact |
Installation orientation | Any |
Number of door position NC contacts | 1 |
Number of door position NO contacts | 1 |
Connection | |
1 x | M20 x 1.5 |
Approach speed | 0,5 ... 20 m/min |
Actuating element | Spring actuator |
Actuating force | min.15 N |
Electrical connection ratings
Thermal rated current Ith | 6 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 6A 230V |
DC-13 | 6A 24V |
AC-12 | 10A 230V |
Short circuit protection according to IEC 60269-1 | 6A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 24V | 10 mA |
Connection cross-section | 0,34 ... 1,5 mm² |
