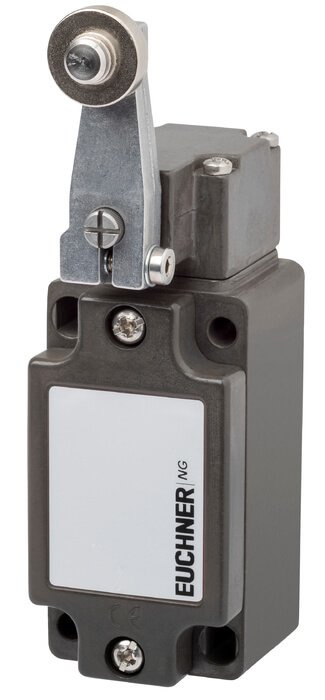

Euchner NG1HS-510-M 079927 Pozisyon Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
273110
Garanti Süresi
24 Ay
Fiyat
111,00 EUR + KDV
* 1.416,30 TL den başlayan taksitlerle!
5.194,99 TL
Euchner NG1HS-510-M 079927
Pozisyon Anahtarı NG.HS, çelik silindir
Makaralı kol HS (çelik makara)
Kablo girişi M20 x 1.5
Anahtarlama elemanı
510 Snap-action anahtarlama kontağı 1 NC + 1 NO
Ayar seçenekleri
Yatay ve dikey 4 x 90 °
Anahtarlama yönü
Sağa, sola veya her iki tarafa geçer
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Anodized die-cast alloy |
| Weight | |
| Net | 0,3 kg |
| Ambient temperature | -25 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 30 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Snap-action switching contact |
| Installation orientation | Any |
| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Connection | |
| 1 x | M20 x 1.5 |
| Approach speed | 0,1 ... 60 m/min |
| Actuating element | |
| Plain bearing metal | Roller lever arm |
| Actuating force | min.15 N |
Electrical connection ratings
| Thermal rated current Ith | 6 A |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 6A 230V |
| DC-13 | 6A 24V |
| AC-12 | 10A 230V |
| Short circuit protection according to IEC 60269-1 | 6A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching current | |
| Min. at DC 24V | 10 mA |
| Connection cross-section | 0,34 ... 1,5 mm² |
