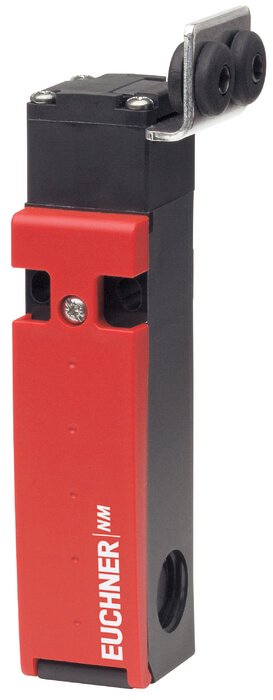

Euchner NM03VZA-M 084455 Güvenlik Anahtarı

Figür

Yatay ve dikey

90 ° 'lik adımlarla ayarlanabilir

Anahtarlama elemanı

ES03 Yavaş hareketli anahtarlama kontağı 3 NC



Approvals

Mechanical values and environment

Design	Long housing
Housing material
Housing	Reinforced thermoplastic
Weight
Net	0,1 kg
Ambient temperature	-20 ... 80 °C
Degree of protection	IP67
Mechanical life	1 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Installation orientation	Any
Number of door position positively driven contacts	3
Connection
3 x	M16 x 1.5
Approach speed	max.20 m/min
Actuation frequency	max.7000 1/h
Retention force	2 N
Extraction force	10 N
Actuating force	10 N
Insertion depth	20 mm

Electrical connection ratings

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 230V
DC-13	4A 24V
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2,5 kV
Switching voltage
Min. at 10mA	12 V
Switching current
Min. at 24V	1 mA
Connection cross-section	0,34 ... 1,5 mm²

Reliability values according to EN ISO 13849-1

	Monitoring of the safety guard position
B10D	4 x 106

---

In combination with Actuator BETAETIGER-M-G

Mechanical values and environment

Overtravel

4 mm
