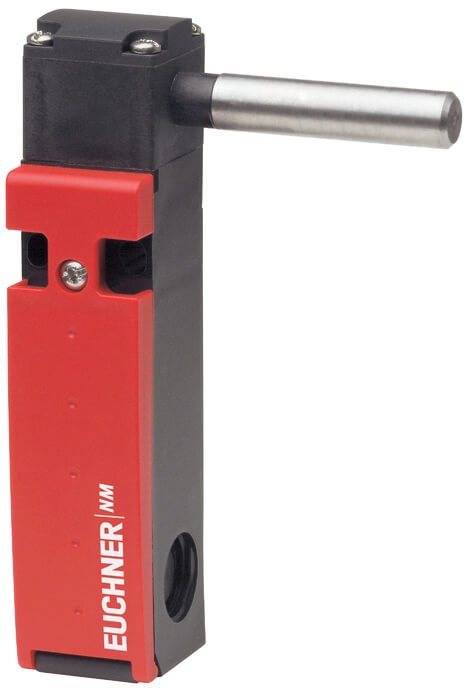

Euchner NM12AV-M 084548 Güvenlik Anahtarı
NM.AV / NM.AL, masif milli olarak menteşeli aktüatör, uzun muhafaza
Dolu mil olarak menteşeli aktüatör
Mil uzunluğu 75 mm
Kablo girişi M16 x 1.5
Anahtarlama elemanı
ES12 Yavaş hareketli anahtarlama kontağı 2 NC + 1 NO
Approvals
Mechanical values and environment
Design | Long housing |
Housing material | |
Housing | Reinforced thermoplastic |
Weight | |
Net | 0,1 kg |
Ambient temperature | -20 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 4 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Slow-action switching contact |
Installation orientation | Any |
Number of door position positively driven contacts | 2 |
Number of door position NO contacts | 1 |
Connection | |
3 x | M16 x 1.5 |
Approach speed | max.60 m/min |
Actuating element | |
Plain bearing plastic | Hinged actuator solid shaft |
Actuation frequency | max.5000 1/h |
Actuating torque | 0,1 Nm |
Electrical connection ratings
Thermal rated current Ith | 4 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 4A 230V |
DC-13 | 4A 24V |
Short circuit protection according to IEC 60269-1 | 4A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching voltage | |
Min. at 10mA | 12 V |
Switching current | |
Min. at 24V | 1 mA |
Connection cross-section | 0,34 ... 1,5 mm² |
Reliability values according to EN ISO 13849-1
Monitoring of the safety guard position | |
B10D | 20 x 106 |
