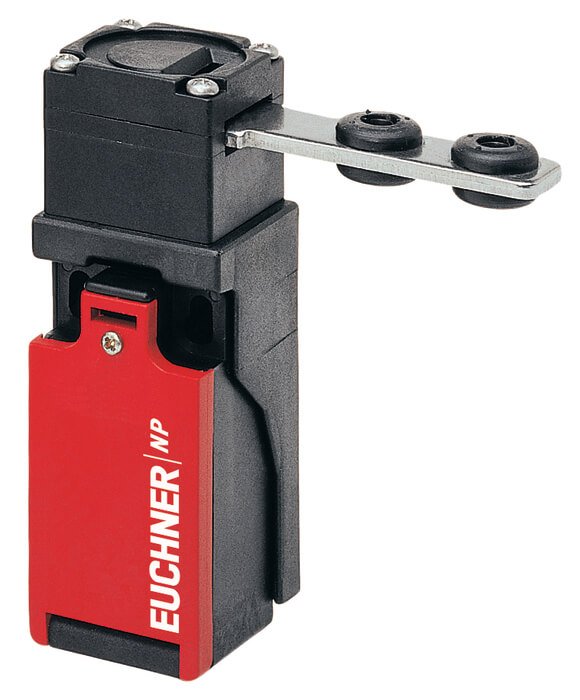

Euchner NP1-628AS-M 083688 Emniyet Anahtarı

Figür

Yatay ve dikey

90 ° 'lik adımlarla ayarlanabilir

Anahtarlama elemanı

628 Yavaş hareketli anahtarlama kontağı 1 NC + 1 NO



Approvals

Mechanical values and environment

Horizontal insertion depth	28 mm
Vertical insertion depth	29,5 mm
Housing material
Housing	Reinforced thermoplastic
Weight
Net	0,5 kg
Ambient temperature	-20 ... 80 °C
Degree of protection	IP67
Mechanical life	1 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Mounting method	Mounting according to EN50047
Installation orientation	Any
Number of door position positively driven contacts	1
Number of door position NO contacts	1
Connection
1 x	M20 x 1.5
Approach speed	max.20 m/min
Actuation frequency	max.7000 1/h
Retention force	2 N
Extraction force	15 N
Actuating force	5 N

Electrical connection ratings

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 230V
DC-13	4A 24V
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui	400 V
Rated impulse withstand voltage Uimp	2,5 kV
Switching voltage
Min. at 10mA	24 V
Switching current
Min. at 24V	30 mA
Connection cross-section	0,34 ... 1,5 mm²

Reliability values according to EN ISO 13849-1

	Monitoring of the safety guard position
B10D	3 x 106

---

In combination with Actuator BETAETIGER-P-GNT

Mechanical values and environment

Overtravel A B C D E
Horizontal	7 mm

---

In combination with Actuator BETAETIGER-P-GT

Mechanical values and environment

Overtravel A B C D E
Horizontal	2 mm
Overtravel K L M N
Vertical	1,5 mm
