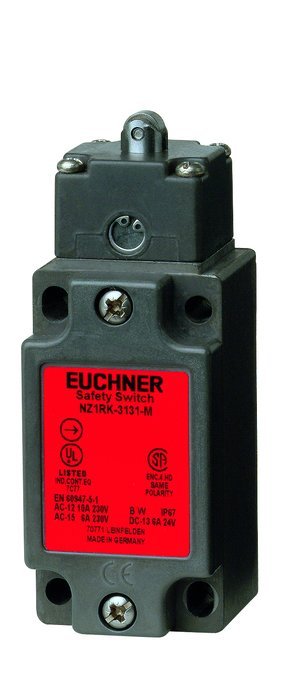

Euchner NZ1RK-3131-M 090908 Emniyet Anahtarı

Figür

Yatay

90 ° 'lik adımlarla ayarlanabilir



Anahtarlama elemanı

3131H Yavaş hareketli anahtarlama kontağı 2 NC + 2 NO



Approvals

Mechanical values and environment

Housing material
Housing	Anodized die-cast alloy
Weight
Net	0,3 kg
Ambient temperature	-25 ... 80 °C
Degree of protection	IP67
Mechanical life	30 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Installation orientation	Any
Number of door position positively driven contacts	2
Number of NO contacts	2
Connection
1 x	M20 x 1.5
Approach speed	0,1 ... 50 m/min
Actuating element
Plain bearing metal	Roller plunger
Actuating force	15 ... 30 N

Electrical connection ratings

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 230V
DC-13	4A 24V
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2,5 kV
Switching current
Min. at DC 24V	1 mA
Connection cross-section	0,34 ... 1,5 mm²

Reliability values according to EN ISO 13849-1

	Monitoring of the safety guard position
B10D	20 x 106
