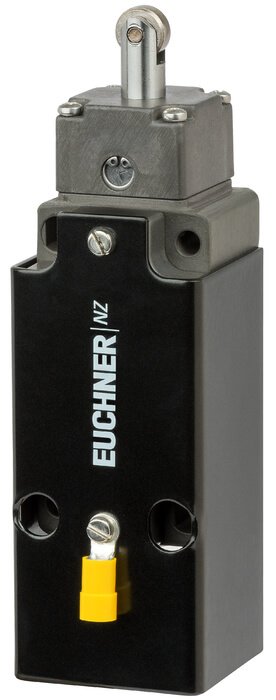

Euchner NZ1RS-3131-M-EX 094169
Emniyet Anahtarı NZ.RS ATEX, çelik makara ø 12 mm, makaralı piston
ATEX versiyonu
EN 50041'e göre C versiyonu (çelik makara ø 12 mm)
Bölge 2 ve 22'de kullanıma uygundur (gazlar ve tozlar)
Kablo girişi M20 x 1.5
Anahtarlama elemanı
3131H Yavaş hareketli anahtarlama kontağı 2 NC + 2 NO
Approvals
Mechanical values and environment
Housing material | |
Housing | Anodized die-cast alloy |
Weight | |
Approx. | 0,35 kg |
Ambient temperature | -20 ... 75 °C |
Degree of protection | IP67 |
Mechanical life | 30 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Slow-action switching contact |
Installation orientation | Any |
Number of door position positively driven contacts | 2 |
Number of NO contacts | 2 |
Connection | |
1 x | Cable gland M20 x 1.5 |
Clamping range for cable | 6,5 ... 12 mm |
Approach speed | 0,1 ... 20 m/min |
Actuating element | |
Plain bearing metal | Roller plunger |
Roller diameter | 12 mm |
Actuating force | |
At 20°C | 30 N |
Electrical connection ratings
Thermal rated current Ith | 4 A |
Utilization category acc. to EN 60947-5-1 | |
AC-15 | 4A 50V |
DC-13 | 4A 24V |
Short circuit protection according to IEC 60269-1 | 4A gG |
Rated insulation voltage Ui | 50 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching voltage | 12 V |
Switching current | |
Min. at DC 24V | 1 mA |
Degree of contamination (external, according to EN 60947-1) | 3 (industry) |
Connection cross-section | 0,34 ... 1,5 mm² |
Other
Explosion protection | |
incl. cable gland | II3G Ex nR IIB T5 Gc X / II3D Ex tc IIIC T100°C Dc |
Reliability values according to EN ISO 13849-1
Monitoring of the safety guard position | |
B10D | 20 x 106 |
