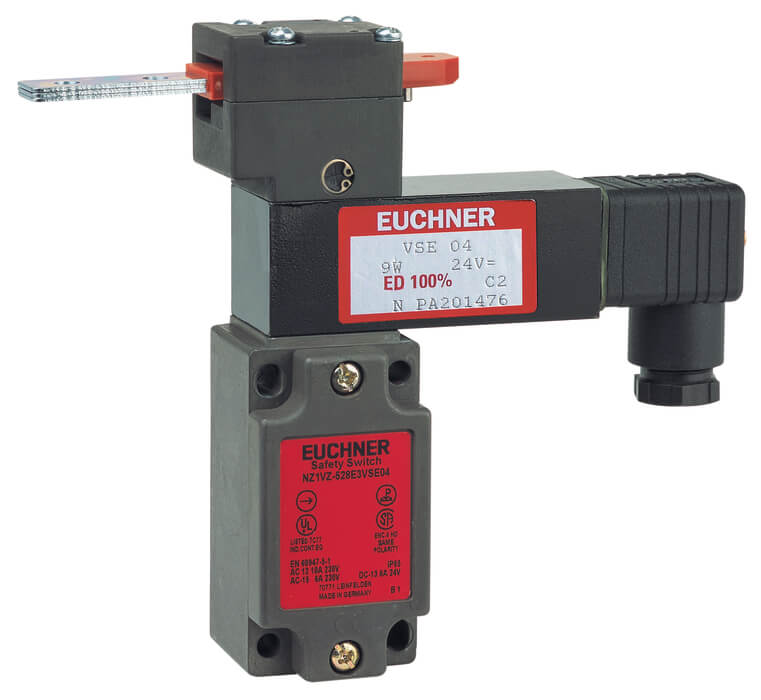

Euchner NZ1VZ-528E3VSE09-M 088047 Emniyet Anahtarı

Figür

Yatay

90 ° 'lik adımlarla ayarlanabilir



Koruma kilitleme tipi

VSE Açık devre akımı prensibi, solenoide gerilim uygulayarak koruma kilitleme. Yay kuvvetiyle serbest bırakın.

Anahtarlama elemanı

528H Yavaş hareketli anahtarlama kontağı 1 NC + 1 NO



Approvals

Mechanical values and environment

Housing material
Housing	Anodized die-cast alloy
Weight
Net	0,7 kg
Ambient temperature	-25 ... 80 °C
Degree of protection	IP65
Mechanical life	2 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Solenoid alignment	3
Installation orientation	Any
Number of door position positively driven contacts	1
Number of door position NO contacts	1
Connection
1 x	M20 x 1.5
Approach speed	max.20 m/min
Actuation frequency	max.1200 1/h
Guard locking principle	Open-circuit current principle
Locking force Fmax	2000 N
Locking force FZh	1500 N
Retention force	35 N
Extraction force	40 N
Actuating force	45 N
Insertion depth	52 mm

Electrical connection ratings

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 230V
DC-13	4A 24V
Solenoid operating voltage
AC	230 V -15% ... 10%
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui
AC/DC	250 V
Rated impulse withstand voltage Uimp	2,5 kV
Switching voltage
Min. at 10mA	12 V
Switching current
Min. at 24V	1 mA
Connection cross-section	0,34 ... 1,5 mm²

Reliability values according to EN ISO 13849-1

	Control of the guard locking
Category	Depending on external control of guard locking
Performance Level	Depending on external control of guard locking
PFHD	Depending on external control of guard locking
	Monitoring of the position of the safety guard
B10D	4,5 x 106

---

In combination with Actuator BETAETIGER-Z-G

Mechanical values and environment

Overtravel

4 mm

---

In combination with Actuator BETAETIGER-Z-GN

Mechanical values and environment

Overtravel

16 mm
