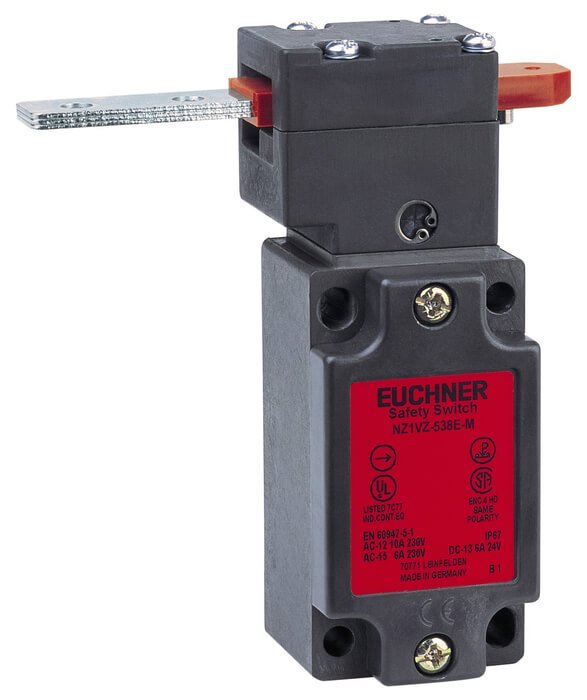

Euchner NZ1VZ-538E-M 085676 Güvenlik Anahtarı

Figür

Yatay

90 ° 'lik adımlarla ayarlanabilir

Anahtarlama elemanı

538H Yavaş hareketli anahtarlama kontağı 2 NC



Approvals

Mechanical values and environment

Housing material
Housing	Anodized die-cast alloy
Weight
Net	0,3 kg
Ambient temperature	-25 ... 80 °C
Degree of protection	IP67
Mechanical life	2 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Installation orientation	Any
Number of door position positively driven contacts	2
Connection
1 x	M20 x 1.5
Approach speed	max.20 m/min
Actuation frequency	max.1200 1/h
Retention force	8 N
Extraction force	35 N
Actuating force	35 N
Insertion depth	52 mm

Electrical connection ratings

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 230V
DC-13	4A 24V
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2,5 kV
Switching voltage
Min. at 10mA	12 V
Switching current
Min. at 24V	1 mA
Connection cross-section	0,34 ... 1,5 mm²

Reliability values according to EN ISO 13849-1

	Monitoring of the safety guard position
B10D	4,5 x 106

---

In combination with Actuator BETAETIGER-Z-GN

Mechanical values and environment

Overtravel

16 mm

---

In combination with Actuator BETAETIGER-Z-G

Mechanical values and environment

Overtravel

4 mm
