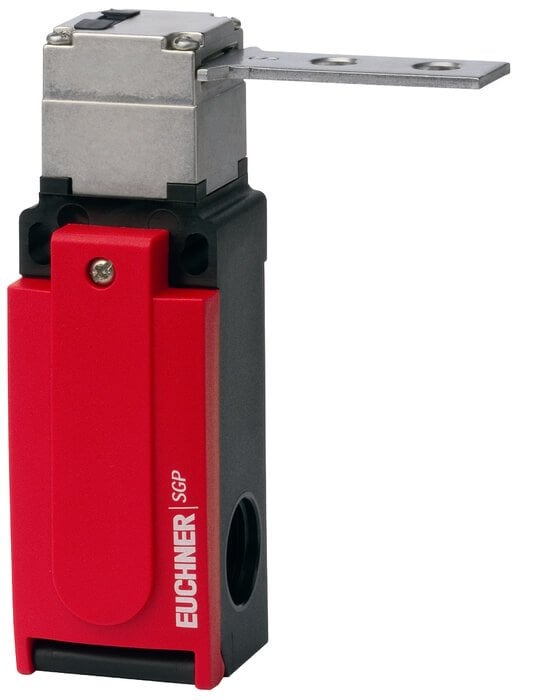

Euchner SPG2E-2131ASR11 099084 Emniyet Anahtarı

Yaklaşma yönü

Figür

Yatay ve dikey

90 ° 'lik adımlarla ayarlanabilir

Anahtarlama elemanı

2131 Yavaş hareketli anahtarlama kontağı 3 NC + 1 NO



Approvals

Mechanical values and environment

Housing material
Housing	Reinforced thermoplastic
Weight
Net	0,5 kg
Ambient temperature	-20 ... 80 °C
Degree of protection	IP65
Mechanical life	2 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Installation orientation	Any
Number of door position positively driven contacts	3
Number of door position NO contacts	1
Connection
1 x	Plug connector SR11
Approach speed	max.20 m/min
Actuation frequency	max.6700 1/h
Retention force	10 N
Extraction force	25 N
Actuating force	25 N
Insertion depth	24,5 mm

Electrical connection ratings

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 50V
DC-13	4A 24V
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui	50 V
Rated impulse withstand voltage Uimp	1,5 kV
Switching voltage
Min. at 10mA	12 V
Switching current
Min. at 24V	1 mA

Reliability values according to EN ISO 13849-1

	Monitoring of the safety guard position
B10D	3 x 106

---

In combination with Actuator BETAETIGER-S-GT-SN

Mechanical values and environment

Overtravel

5 mm
