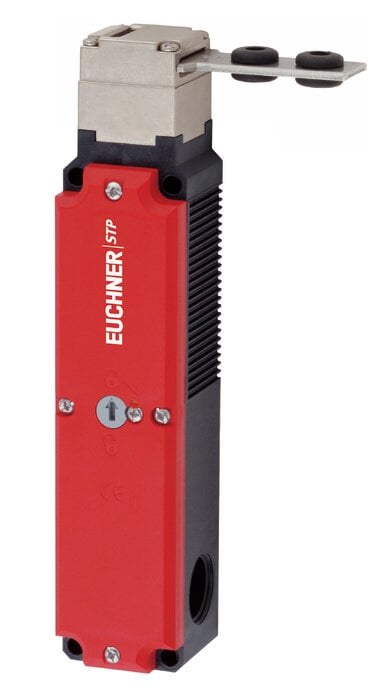

Euchner STP4A-2131A024M 091494
Kapı izleme kontaklı STP emniyet Anahtarı
Metalden yapılmış harekete geçirici kafa
Ön tarafta yardımcı serbest bırakma
Kapı izleme kontağı ile
Approach direction
Figür
Yatay ve dikey
90 ° 'lik adımlarla ayarlanabilir
Solenoid çalışma voltajı
AC / DC 24 V +% 10, -% 15
Koruma kilitleme tipi
STP4 Açık devre akımı prensibi, kapalı tutma solenoidine gerilim uygulayarak kapalı tutma. Yay kuvvetiyle serbest bırakın.
Anahtarlama elemanı
2131 Yavaş hareketli anahtarlama kontağı 2 NC + 1 NO + 1 NC (kapı izleme kontağı)
Yardımcı sürüm
Kapalı tutmayı bir alet yardımıyla açmak için kullanılır. Kurcalanmaya karşı koruma sağlamak için, yardımcı açma sızdırmazlık cilası ile kapatılmıştır.
Approvals
Mechanical values and environment
Housing material
Housing
Reinforced thermoplastic
Weight
Net
0,5 kg
Ambient temperature
-20 ... 55 °C
Degree of protection
IP67
Mechanical life
1 x 106
Contact material
Silver alloy, gold flashed
Switching principle
Slow-action switching contact
Installation orientation
Any
Number of door position NC contacts
1
Number of guard lock monitoring positively driven contacts
2
Number of guard lock monitoring NO contacts
1
Connection
3 x
M20 x 1.5
Approach speed
max.20 m/min
Actuation frequency
max.1200 1/h
Guard locking principle
Open-circuit current principle
Locking force Fmax
2500 N
Locking force FZh
2000 N
Retention force
20 N
Extraction force
30 N
Actuating force
35 N
Insertion depth
24,5 mm
Electrical connection ratings
Thermal rated current Ith
4 A
Utilization category acc. to EN 60947-5-1
AC-15
4A 230V
DC-13
4A 24V
Solenoid operating voltage
AC/DC
24 V -15% ... +10%
Short circuit protection according to IEC 60269-1
4A gG
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
2,5 kV
Switching voltage
Min. at 10mA
12 V
Switching current
Min. at 24V
1 mA
Connection rating
8 W
Solenoid duty cycle
100 %
Connection cross-section
0,34 ... 1,5 mm²
Reliability values according to EN ISO 13849-1
Monitoring of guard locking and the safety guard position
B10D
5 x 106
In combination with Actuator BETAETIGER-S-GT-SN
Mechanical values and environment
Overtravel
5 mm
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Reinforced thermoplastic |
| Weight | |
| Net | 0,5 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position NC contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Number of guard lock monitoring NO contacts | 1 |
| Connection | |
| 3 x | M20 x 1.5 |
| Approach speed | max.20 m/min |
| Actuation frequency | max.1200 1/h |
| Guard locking principle | Open-circuit current principle |
| Locking force Fmax | 2500 N |
| Locking force FZh | 2000 N |
| Retention force | 20 N |
| Extraction force | 30 N |
| Actuating force | 35 N |
| Insertion depth | 24,5 mm |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 4A 230V |
| DC-13 | 4A 24V |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Connection rating | 8 W |
| Solenoid duty cycle | 100 % |
| Connection cross-section | 0,34 ... 1,5 mm² |
Reliability values according to EN ISO 13849-1
| Monitoring of guard locking and the safety guard position | |
| B10D | 5 x 106 |
In combination with Actuator BETAETIGER-S-GT-SN
Mechanical values and environment
| Overtravel | 5 mm |
