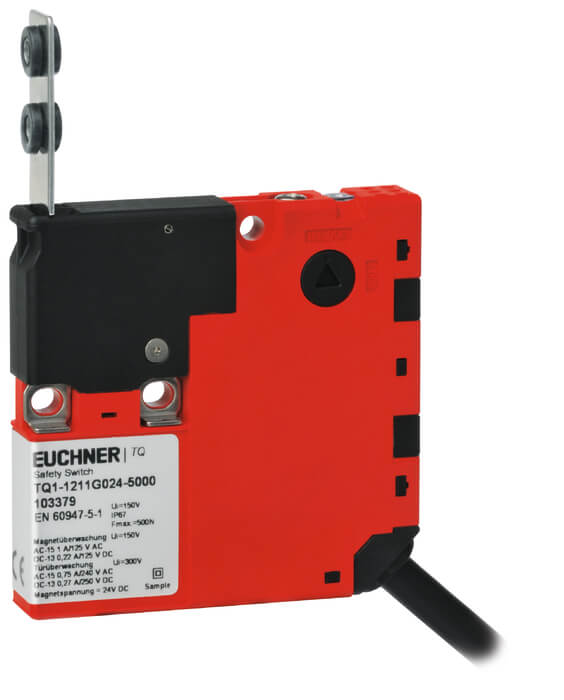

Euchner TQ1-1211G024-5000 103379 Emniyet Anahtarı
0 - Yorum
Kategori
Marka
Stok Kodu
273202
Garanti Süresi
24 Ay
Fiyat
532,94 EUR + KDV
* 6.799,75 TL den başlayan taksitlerle!
24.941,45 TL
Euchner TQ1-1211G024-5000 103379 Emniyet Anahtarı TQ
Kompakt gövde
3 taraftan yardımcı serbest bırakma
Herhangi bir kurulum yönü
LED göstergesi
Bağlantı kablosu 5m
Koruma kilitleme türleri
TQ1 Kapalı devre akımı prensibi, yay kuvveti ile kapalı tutma. Kapalı tutma solenoidine gerilim uygulayarak serbest bırakın.
Anahtarlama elemanları
SK Kapı / aktüatör konumunu izlemek için.
ÜK Kapalı tutmayı izlemek için izleme kontağı (dahili solenoid).
1211 Yavaş hareketli anahtarlama kontağı 2 NC + 1 NC + 2 NO
Yardımcı sürüm
Bu, üçgen anahtarla (dahil) çalıştırıldıktan sonra koruma kilidini serbest bırakır.
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Reinforced thermoplastic |
| Weight | |
| Net | 0,5 kg |
| Ambient temperature | -20 ... 50 °C |
| Degree of protection | IP67 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position positively driven contacts | 2 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring NC contacts | 1 |
| Number of guard lock monitoring NO contacts | 1 |
| Connection | Connection cable 5m |
| Approach speed | 0,05 ... 1 m/min |
| Actuation frequency | max.900 1/h |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 500 N |
| Retention force | 1 N |
| Extraction force | 10 N |
| Actuating force | 5 N |
| Insertion depth | 26,3 mm |
Electrical connection ratings
| Thermal rated current Ith | 2,5 A |
| Utilization category acc. to EN 60947-5-1 | |
| AC-15 | 0.75A 250V |
| 1A 125V | |
| DC-13 | 0.27A 250V |
| 0.22A 125V | |
| Solenoid operating voltage | |
| DC | 24 V -15% ... +10% |
| Short circuit protection according to IEC 60269-1 | 2A gG |
| Rated insulation voltage Ui | 300 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Connection rating | 2,7 W |
| Solenoid duty cycle | 100 % |
Reliability values according to EN ISO 13849-1
| Monitoring of the position of the safety guard | |
| B10D | 2 x 106 |
| Control of the guard locking | |
| Category | Depending on external control of guard locking |
| Performance Level | Depending on external control of guard locking |
| PFHD | Depending on external control of guard locking |
In combination with Actuator BETAETIGER-Q-GT, RADIUSBETAETIGER-Q-RO, RADIUSBETAETIGER-Q-LU, BETAETIGER-Q-WT
Mechanical values and environment
| Overtravel A B C D E | 1,9 mm |
In combination with Actuator BETAETIGER-Q-WTB
Mechanical values and environment
| Overtravel A B C D E | 1,3 mm |
