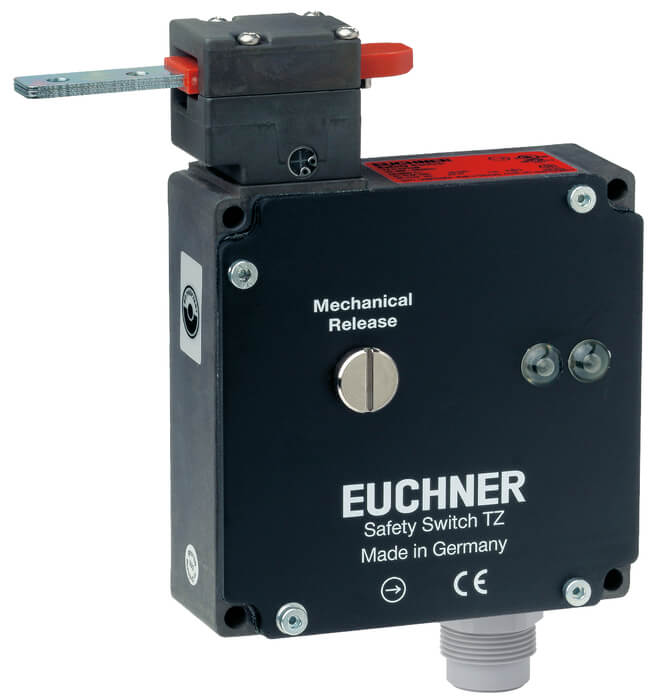

Euchner TZ1LE024SR11 070828 Emniyet Anahtarı

Figür

Yatay

90 ° 'lik adımlarla ayarlanabilir

Solenoid çalışma voltajı ve LED fonksiyon göstergesi

24 V AC / DC -% 15, +% 10

Koruma kilitleme tipi

TZ1 Kapalı devre akımı prensibi, yay kuvveti ile kapalı tutma. Solenoide voltaj uygulayarak serbest bırakın.

Anahtarlama elemanı

SK Kapı / aktüatör konumunu izlemek için

ÜK Kapalı tutmayı izlemek için (dahili solenoid)

528H Yavaş hareketli anahtarlama kontağı 1 NC + 1 NO

Yardımcı sürüm

Kapalı tutmayı bir alet yardımıyla açmak için kullanılır. Kurcalamaya karşı korumak için sızdırmazlık takılabilir. Kurşun conta kiti ve alet dahildir (fiş konnektörlü versiyonlarda önceden monte edilmiştir).



Approvals

Mechanical values and environment

Housing material
Housing	Anodized die-cast alloy
Weight
Net	1,2 kg
Ambient temperature	-25 ... 80 °C
Degree of protection	IP65
Mechanical life	1 x 106
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Installation orientation	Any
Number of door position positively driven contacts	1
Number of door position NO contacts	1
Number of guard lock monitoring positively driven contacts	1
Number of guard lock monitoring NO contacts	1 Switches green LED
Connection
1 x	Plug connector SR11
Approach speed	max.20 m/min
Actuation frequency	max.1200 1/h
Guard locking principle	Closed-circuit current principle
Locking force Fmax	2000 N
Locking force FZh	1500 N
Retention force	10 N
Extraction force	30 N
Actuating force	35 N
Insertion depth	52 mm
Lid	Black

Electrical connection ratings

Thermal rated current Ith	4 A
Utilization category acc. to EN 60947-5-1
AC-15	4A 50V
DC-13	4A 24V
Solenoid operating voltage
AC/DC	24 V -15% ... +10%
Short circuit protection according to IEC 60269-1	4A gG
Rated insulation voltage Ui	50 V
Rated impulse withstand voltage Uimp	1,5 kV
Switching voltage
Min. at 10mA	12 V
Switching current
Min. at 24V	1 mA
Connection rating	10 W
Solenoid duty cycle	100 %
LED indicator	Operating voltage corresponds to the solenoid voltage

Reliability values according to EN ISO 13849-1

	Control of the guard locking
Category	Depending on external control of guard locking
Performance Level	Depending on external control of guard locking
PFHD	Depending on external control of guard locking
	Monitoring of guard locking and the safety guard position
B10D	3 x 106

---

In combination with Actuator BETAETIGER-Z-GN

Mechanical values and environment

Overtravel

16 mm

---

In combination with Actuator BETAETIGER-Z-G

Mechanical values and environment

Overtravel

4 mm
