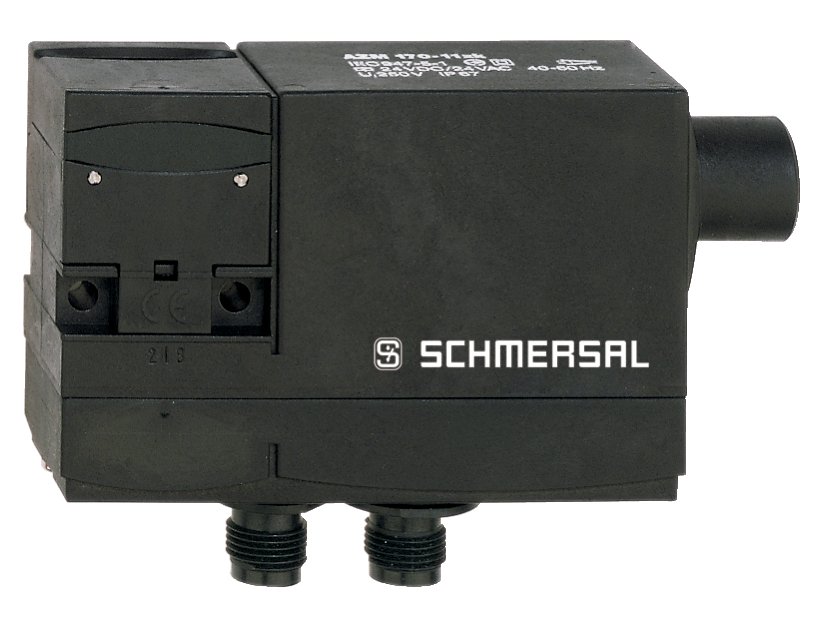

Schmersal AZM 170-02ZRKA-ST 24VAC/DC 101141422 Solenoid Kilit

0 - Yorum
Kategori
Marka
Stok Kodu
273749
Garanti Süresi
24 Ay
Fiyat
760,85 EUR + KDV
* 9.707,74 TL den başlayan taksitlerle!
35.607,97 TL
Schmersal AZM 170-02ZRKA-ST 24VAC/DC 101141422 Solenoid Kilit

Uzun ömürlü
Manuel yayın
Kompakt tasarım
Çift yalıtımlı
Yüksek tutma kuvveti
Konektör M12, 4 kutuplu
90 mm x 84 mm x 30 mm
Termoplastik muhafaza
Hatalara karşı koruma ile kilitleme.



Product type description
AZM 170-02ZRKA-ST 24 VAC/DC
Article number (order number)
101141422
EAN (European Article Number)
4030661121888
eCl@ss number, Version 9.0
27-27-26-03
eCl@ss number, Version 11.0
27-27-26-03
Approval - Standards
Certificates
BG
cULus
CCC
EAC
CNCA
General data
Product name
AZM 170
Standards
EN 60947-5-1
BG-GS-ET-19
Coding level according to ISO 14119
Low
Active principle
electromechanical
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Material of the contacts, electrical
Silver
Gross weight
275 g
General data - Features
Power to lock
Yes
Manual release
Yes
Number of actuating directions
2
Number of auxiliary contacts
1
Number of safety contacts
2
Safety appraisal
Standards
ISO 13849-1
Mission Time
20 Year(s)
Safety appraisal - Safety outputs
B10d Normally-closed contact (NC)
2,000,000 Operations
Mechanical data
Mechanical life, typical
1,000,000 Operations
Clamping force in accordance with ISO14119 Fzh
1,000 N
Latching force
30 N
positive break travel
11 mm
Positive break force, minimum
17 N
Actuating speed, maximum
2 m/s
Mechanical data - Connection technique
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Connector plug M12, 4-pole, (B-coding)
Mechanical data - Dimensions
Height of sensor
75.5 mm
Length of sensor
30 mm
Width of sensor
90 mm
Ambient conditions
Protection class
IP 67 to IEC/EN 60529
Ambient temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Ambient conditions - Insulation value
Rated impulse withstand voltage
2.5 kV
Electrical data
Thermal test current
4 A
Rated control voltage
24 VAC/DC
Required rated short-circuit current to EN 60947-5-1
1,000 A
Electrical power consumption, maximum
10 W
Switching element
Opener (NC)
Note (Switching element)
Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
Switching principle
Creep circuit element
Switching frequency
1,000 /h
Electrical data - Safety contacts
Voltage, Utilisation category AC15
230 VAC
Current, Utilisation category AC-15
4 A
Voltage, Utilisation category DC13
24 VDC
Current, Utilisation category DC13
4 A
Other data
Note (applications)
sliding safety guard
removable guard
hinged safety guard
Scope of delivery
Included in delivery
Actuators must be ordered separately.
Notes
Note (General)
Individual coding available on request
Note (Manual release)
bottom
For manual release using M5 triangular key, available as accessory
